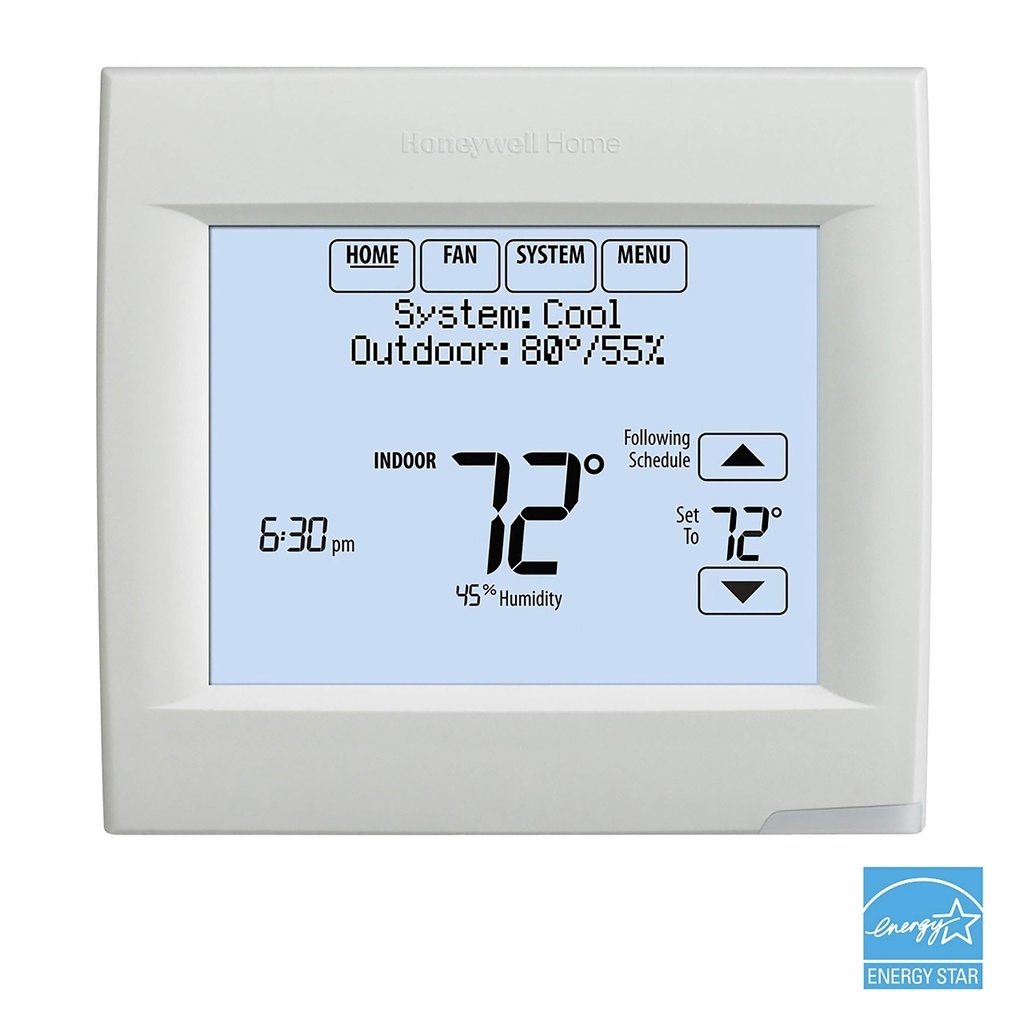

TERMOSTATO Programable Vision PRO 8000 WITH Tecnología RedLINK HONEYWELL
El termostato programable VisionPRO® 8000 Redlink™ permite a los propietarios administrar todo el sistema de confort de su hogar a través de una interfaz fácil de usar. Con la tecnología inalámbrica Redlink, el termostato inteligente permite su uso con accesorios Redlink, como sensores interiores inalámbricos, sensores exteriores inalámbricos y EIM, o la puerta de enlace a Internet Redlink para ayudar a equilibrar la comodidad y la eficiencia energética.
•Funciona en prácticamente cualquier entorno residencial o comercial ligero.
• Ofrece tres formas flexibles de instalación, que ayudan a resolver una variedad de problemas de cableado.
» Conectado directamente al equipo
» 2 cables o inalámbrico con un módulo de interfaz de equipo (EIM)
» 2 cables o inalámbrico con tecnología RedLINK® TrueZONE®
• La configuración en pantalla tiene lenguaje sencillo, lo que ayuda a reducir los errores de instalación y elimina la necesidad de un manual.
• Permite que los instaladores copien la configuración del instalador de un termostato para usarla en otro con
una tarjeta microSD.
• La información del distribuidor en pantalla se muestra con alertas personalizables, lo que fomenta la repetición de negocios.
| Application | 2H/2C Conventional Systems, 3H/2C Heat Pumps with auxiliary heat , Dual Fuel |
|---|---|
| Product Features | Thermostat works standalone or with the THM5421R1021 Equipment Interface Module or with the TrueZONE Wireless Adapter., Smart Schedule - programs in seconds for any lifestyle., Patented interview based programming and installer setup., RedLINK® wireless communication.ENERGY STAR® Certified |
| Thermostat Type | Programmable, Digital, Low Voltage, RedLINK |
| Stages | Up to 3 Heat/2 Cool Heat Pump Systems when used standalone, Up to 2 Heat/2 Cool Conventional Systems when used standalone, Up to 4 Heat/2 Cool Heat Pump Systems when used with the Equipment Interface Module, Up to 3 Heat/2 Cool Conventional Systems when used with the Equipment Interface Module |
| Smart Home Integration | No |
| Display Type | Touch Screen |
| Display Size | 10 sq in |
| Touchscreen | Yes |
| Display Language | English |
| Displayed Information | Indoor Temperature, Indoor Humidity, Outdoor Temperature, Outdoor Humidity, Time, Status Display |
| IAQ Capability | No |
| Modes of Operation | Heat, Off, Cool, Auto, Emergency Heat except model TH8110R1008 |
| Program Type | 7-Day Programmable, Manual / Not Programmed |
| Energy Star Certified | Yes |
| Alerts and Reminders | Customizable Service Reminders |
| Power Supply | Battery, Hardwired |
| Power Source | Hardwired, Battery Operated |
| Number of Batteries | 4 |
| Battery Life | 1 Years |
| Battery Size | AA |
| Battery Type | Alkaline |

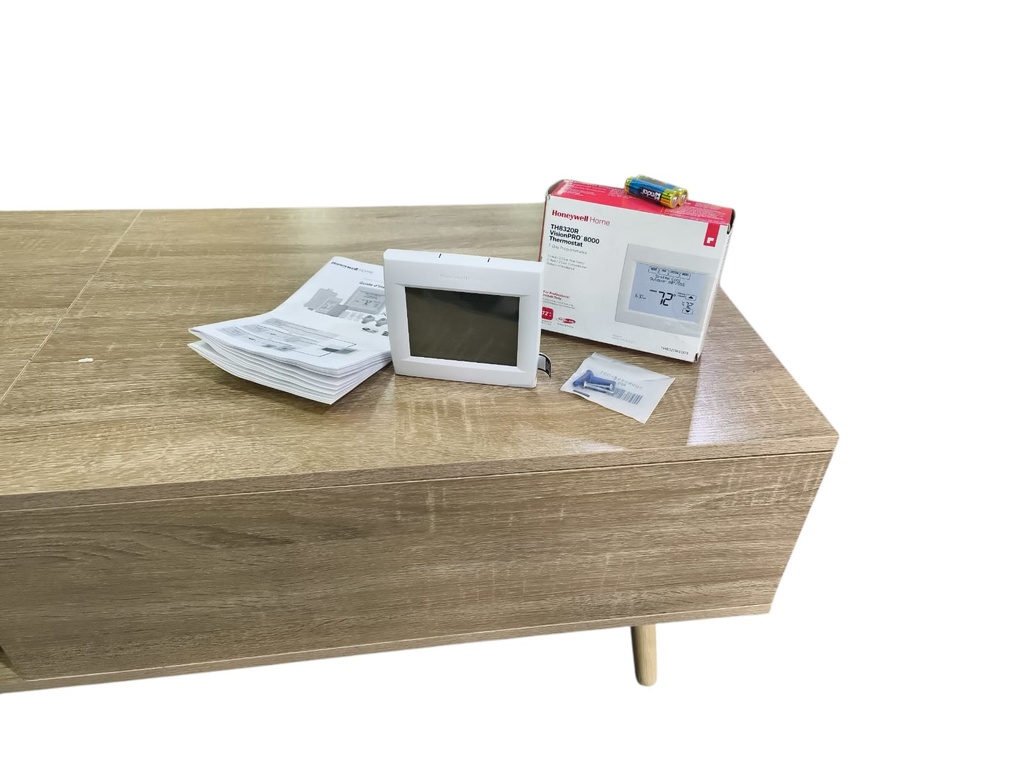

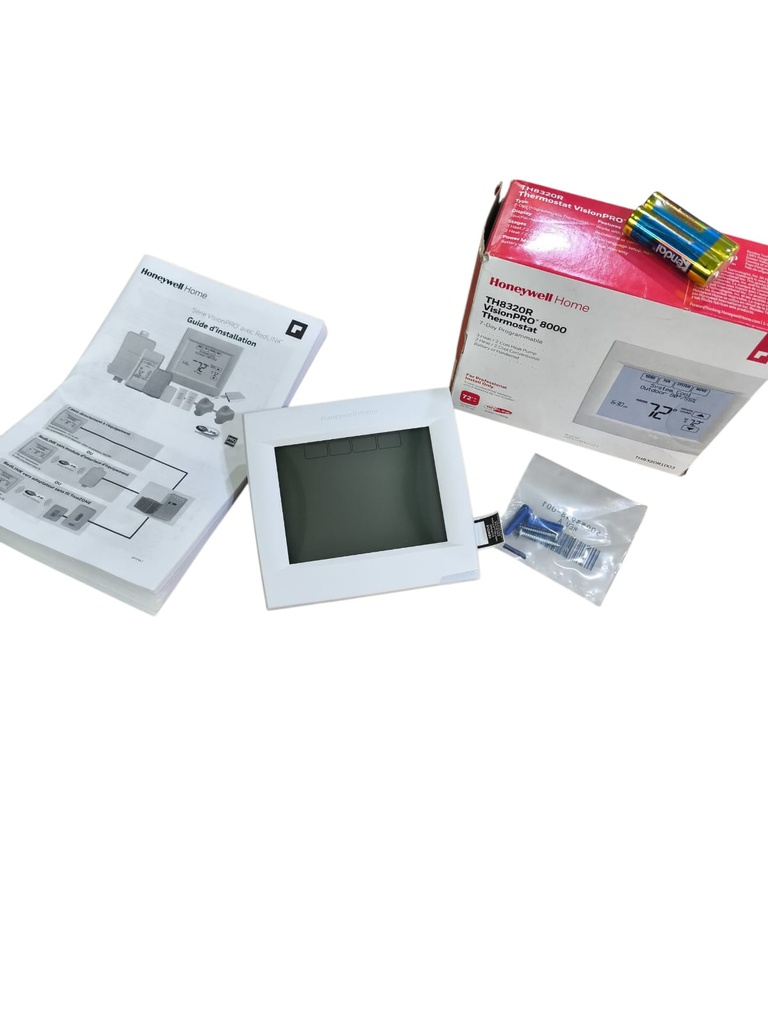

| Includes | VisionPRO® 8000 Thermostat, Wall anchors, Screws |
| For Use With | Works standalone or with optional THM5421R1021 Equipment Interface Module and RedLINK® 2.0 accessories |
| Communication Type | RedLINK, WiFi |
| WiFi | No |
| WiFi Specifications | Internet Gateway THM6000R7001/U Provides WiFi Capabilities |
| Z-Wave | No |
| Z-Wave Specifications | Not Applicable |
| RedLINK | Yes |
| Color | Arctic White |
| Sensor Type | Thermistor |
| Ambient Operating Temperature (Max) | 120 °F, 49 °C |
| Ambient Operating Temperature (Min) | 32 °F, 0 °C |
| Operating Relative Humidity (Max) | 90% Non-condensing |
| Operating Relative Humidity (Min) | 5% Non-condensing |
| Backlight Options | Adjustable |
| Fan Function | On, Auto, Circulating |
| Clock Type | Year Clock |
| Demand Response | No |
| Electrical Connection Type | Screw terminals |
| Mounting Type | Horizontal Mount |
| Power Supply Frequency | 50 Hz, 60 Hz |
| Set point Temperature (Max) | Heat: 90 °F, Heat: 32 °C, Cool: 99 °F, Cool: 37 °C |
| Set point Temperature (Min) | Heat: 40 °F, Heat: 5 °C, Cool: 50 °F, Cool: 10 °C |
| Mounting Location | Wall |
| Product Height | 4.63 in, 118 mm |
| Product Width | 4.94 in, 126 mm |
| Product Depth | 1.13 in, 29 mm |
| Hazmat Information | Lithium metal button cells only contained in equipment, Excepted per PI970 |
| Features | ENERGY STAR Certified, Backlit Display , Filter Change Reminder, Touchscreen Display |
